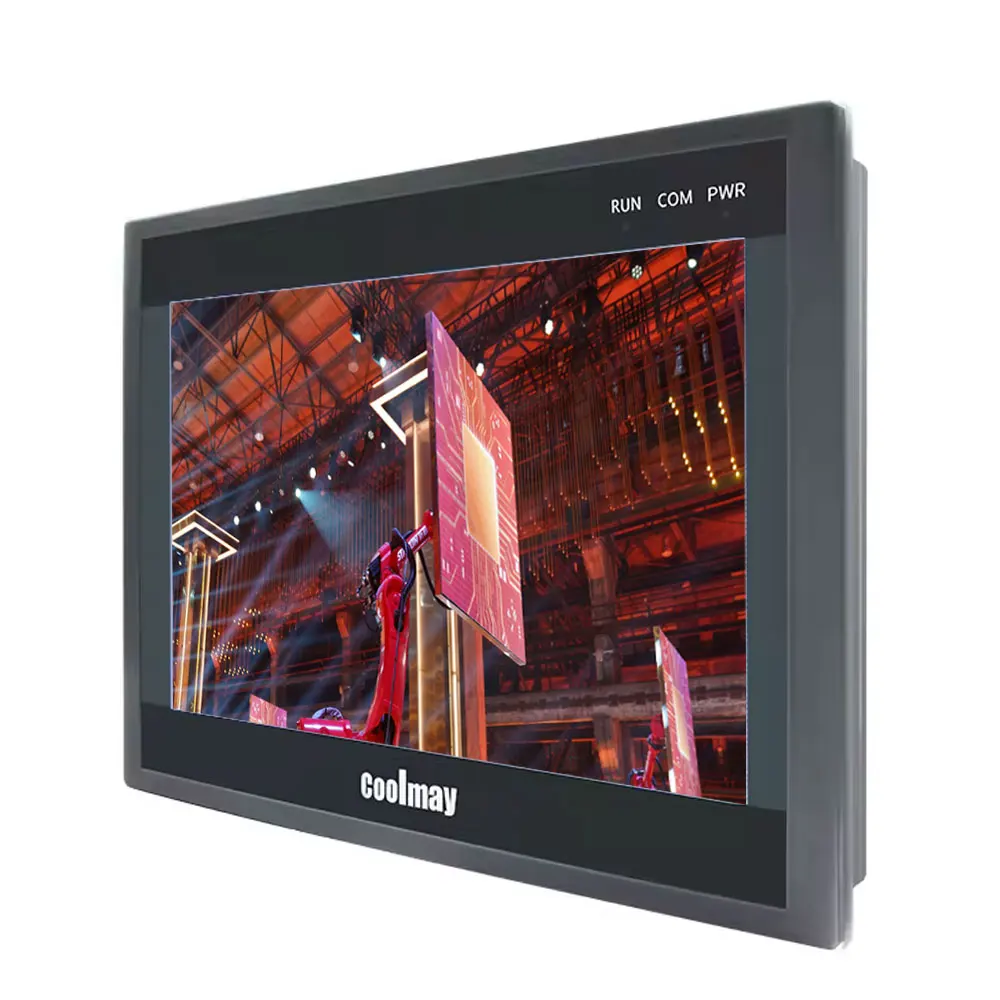

Coolmay 4.3 7 10 Inch HMI PLC All In One QM3G 43FH 70FH 100FH Compatible FX3G FX3U FX3S Support GX Developer GX Works2
Item Description
● Product Name : QM3G Series HMI PLC All in One
● Brand Name : Coolmay
● Feature :● Brand Name : Coolmay
1. Super functions.PLC compatible with FX3G/FX3U/FX3S PLC. lt operate fast.

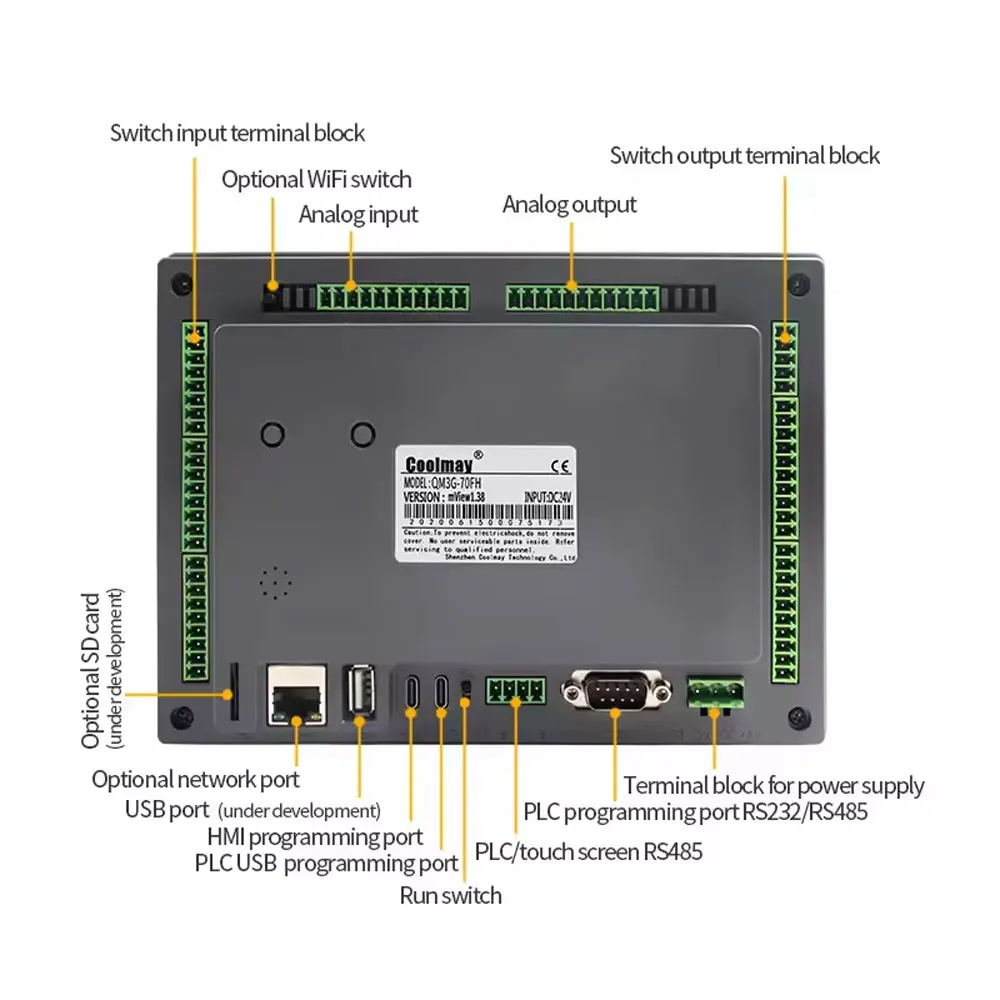

2. Highly integration.The digital points are 30 inputs and 30 outputs at most.The digital output can be transistor,relay or mixedoutout. Analog can reach up to 16 input and 8 output. lt has 2 PLc COM port (Rs232 and USB Port), 1 downloading port on HMl
3. Support several high-speed counting and high-speed pulse. Acceleration and deceleration are independent. The totalhigh-speed counting and pulse can not exceed 480KHz.
4. 32K steps program capacity,32K power-off retentive registers,support interrupt,linear and circular interpolation,PiD self-adjusting
5. Special encryption.Set password as 12345678 to thoroughly prevent reading data.(PLC only supports 8-bit password encryption)
6. PLC is compatible with programming software GX Developer8.86Q and GX Works2, and HMl is mView software.
7. The network module can be selected according to customer reauirements to realize remote control.More models are supported to customize if bulk order.

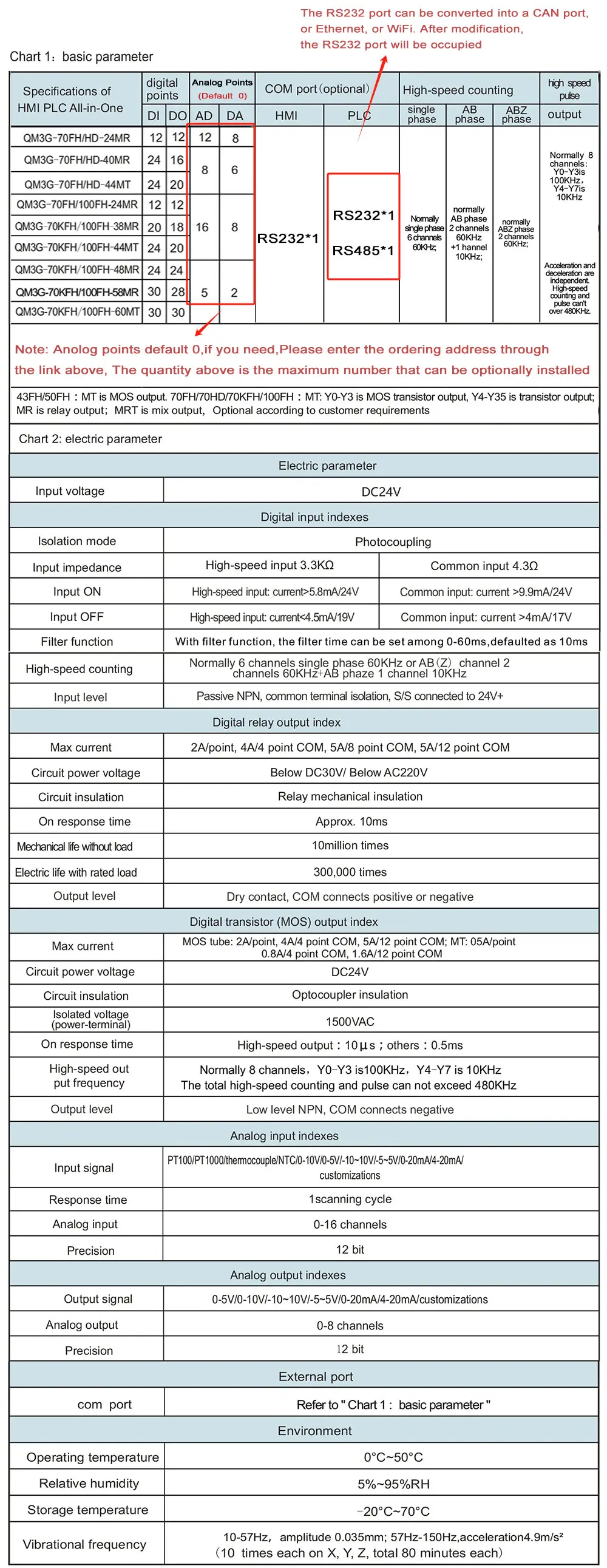

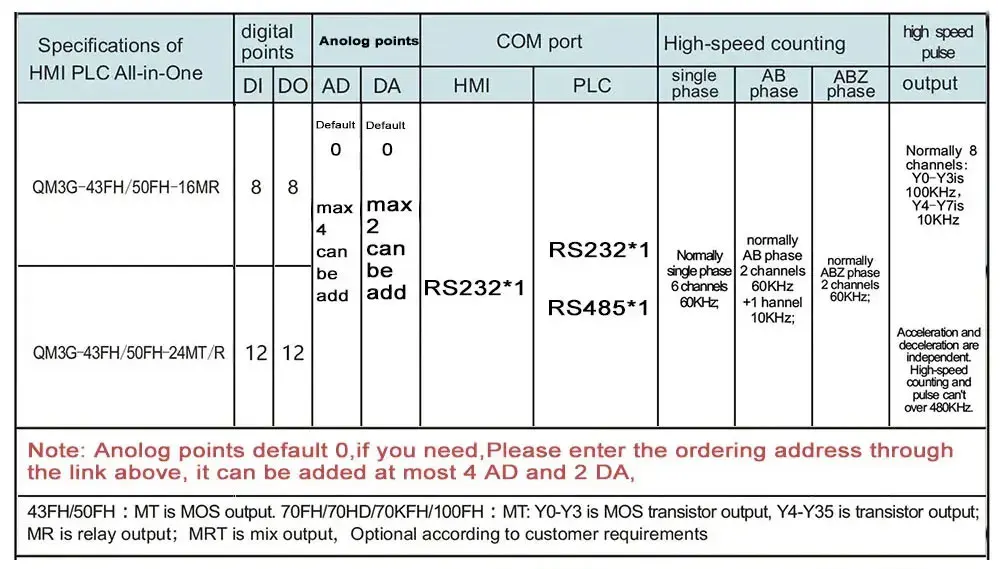

● Basic parameters for product selection :

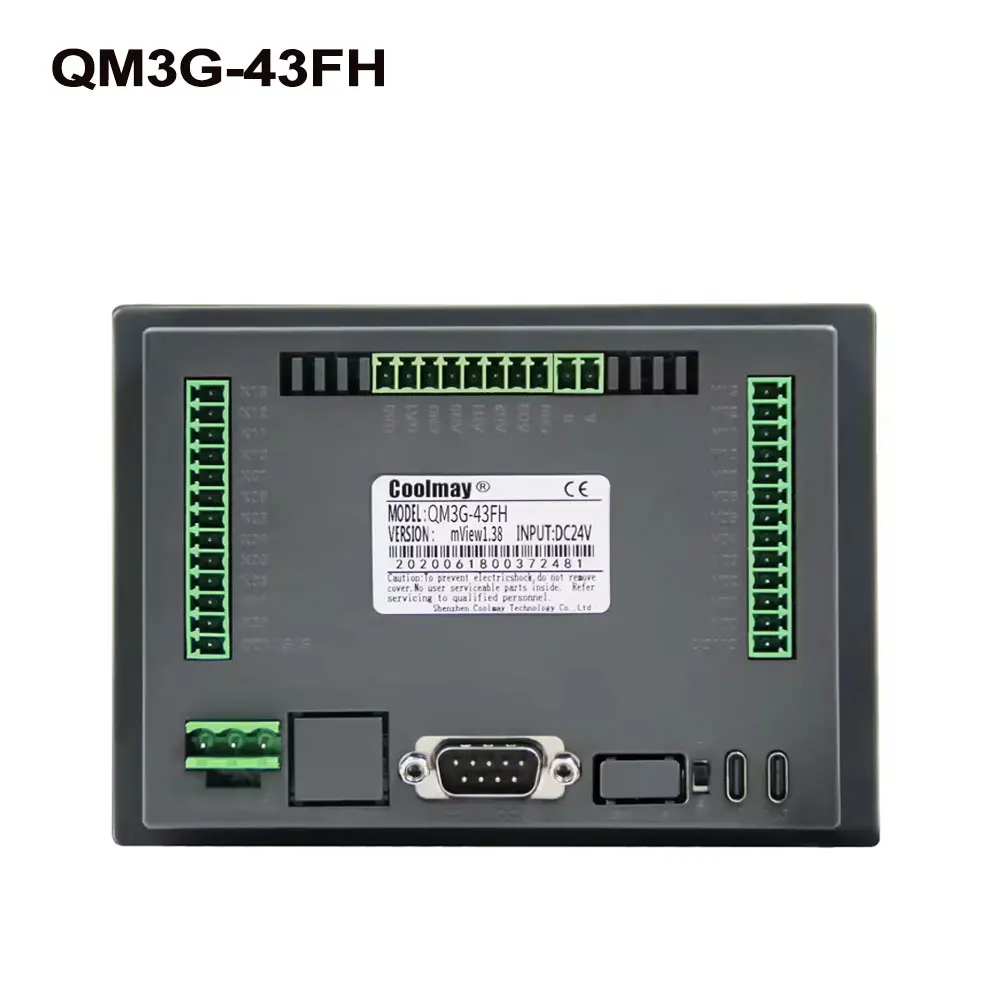

(1) QM3G-43FH-24MT:
4.3 inch HMI PLC all in one, 12DI 12DO, transistor outputs,Optional maximum 4 Analog inputs and 2 Analog outputs(Extra charge),1 RS232(HMI),1 RS232(PLC),1 RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
(2) QM3G-43FH-24MR:
4.3 inch HMI PLC all in one,12DI 12DO, Relay output,Optional maximum 4 Analog inputs and 2 Analog outputs(Extra charge),1 RS232(HMI),1 RS232(PLC),1 RS485(PLC).
(3) QM3G-100FH-24MR:
10 inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs(Extra charge),1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC).
(4) QM3G-100FH-44MT:
10 inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 16 Analog inputs and 8 Analog outputs(Extra charge),1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
(5) QM3G-100FH-60MT:
10 inch HMI PLC all in one, 30DI 30DO, transistor outputs,Optional maximum 5 Analog inputs and 2 Analog outputs(Extra charge),1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
(6) QM3G-100FH-44MRT(18R2T):
10 inch HMI PLC all in one,24DI 20DO(Maximum 18 relay outputs, and Y22 and Y23 are fixed as transistor outputs),Optional maximum 16 Analog inputs and 8 Analog outputs(Extra charge), 1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC).
(7) QM3G-100FH-60MRT(28R2T):
10 inch HMI PLC all in one,30DI 30DO(Maximum 28 relay outputs, and Y22 and Y23 are fixed as transistor outputs),Optional maximum 5 Analog inputs and 2 Analog outputs(Extra charge), 1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC).

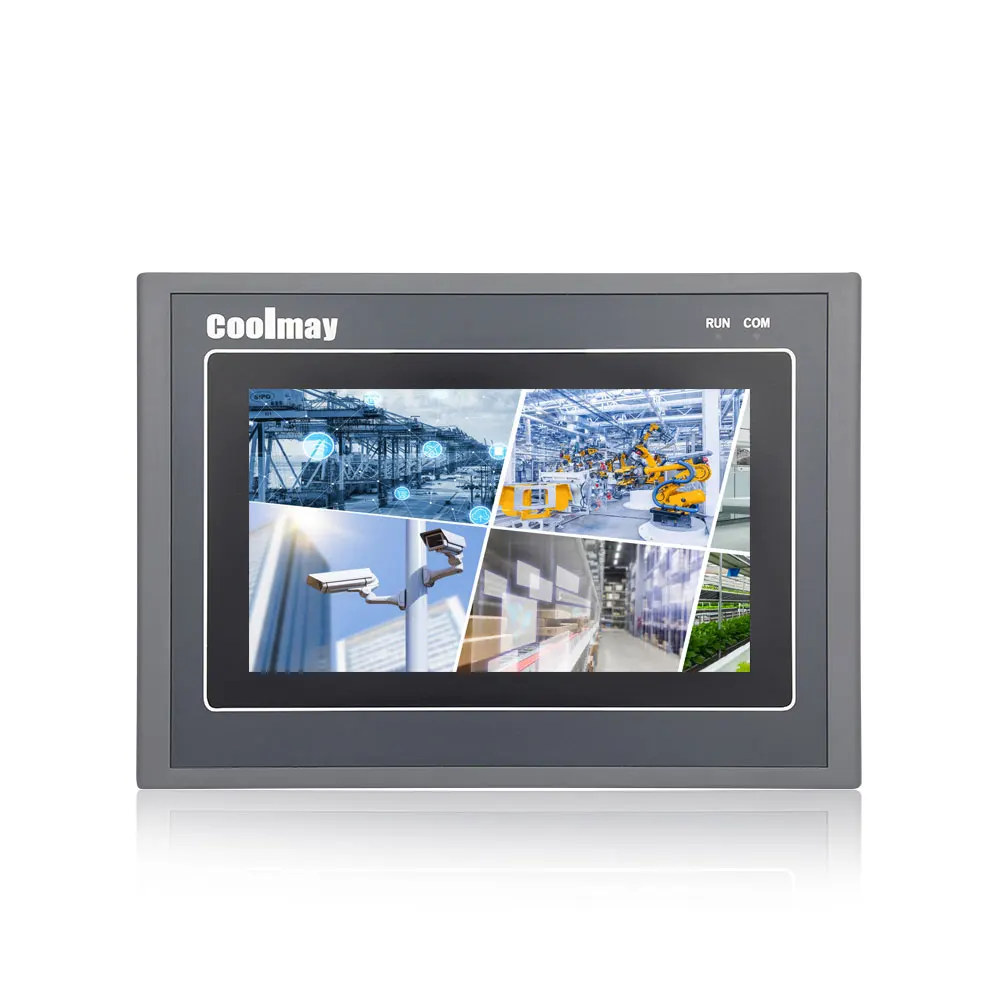

(8) QM3G-70FH-24MR:
7inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 12 Analog inputs and 8 Analog outputs(Extra charge),1 RS232(HMI),1 RS232(PLC),1 RS485(PLC).
(9) QM3G-70FH-44MT:
7inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 8 Analog inputs and 6 Analog outputs(Extra charge),1 RS232(HMI),1 RS232(PLC),1 RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).
(10) QM3G-70FH-44MRT(16R4T):
7inch HMI PLC all in one, 24DI 20DO(Maximum 16 relay outputs, Y20-Y23 are fixed as transistor outputs),Optional maximum 8 Analog inputs and 6 Analog outputs(Extra charge), 1 RS232(HMI), 1 RS232(PLC),1 RS485(PLC).
Note :All above products according to the factory configuration, default 0 analog inputs and 0 analog outputs,
● Details
(1) Al type [Need to purchase independently]
[1] E: Thermocouple E[can be customized as type KT, S or J supports negative temperature]
[2] PT: PT100 [3] PT1000:PT1000 [4] NTC : thermistor[10K, 50K,100K] [5] A0:0-20mA [6]A4:4-20mA [7] V5:0-5V [8] V:0-10V [9] V5_:-5V~5V [10] V_:-10~10V [only 7 and 10 inch support V5_ and V_ ]
Order Now
(2) AO type [Need to purchase independently]
[1] A0:0-20mA [2]A4:4-20mA [3]V5:0-5V [4] V:0-10V [5] V5_ :-5V~5V [6]V_:-10~10V [only 7 inch and 10 inch support V5_ and V_, and covers 2 channels]
Order Now
● Related downloads
